01
High-strength cast-iron base
Annealing, vibration aging, and staged precision machining release internal stress and support long-term dimensional stability.
Odd-form insertion systems for electronics manufacturing
Odd-form placement and insertion systems for complex electronics assembly

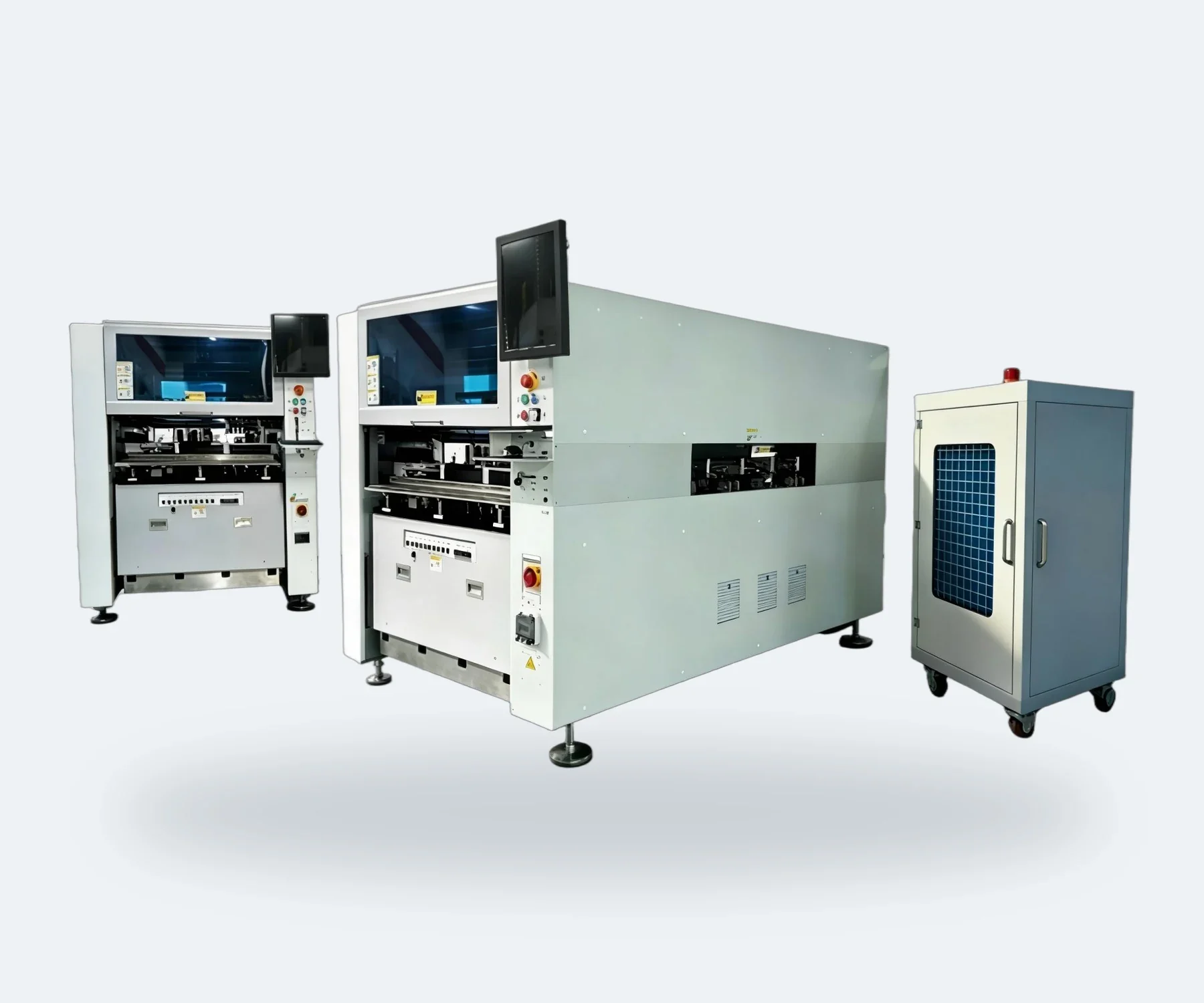

Winseason combines WIN-series insertion machines, configurable feeders, machine vision, and force control for high-mix electronics production.

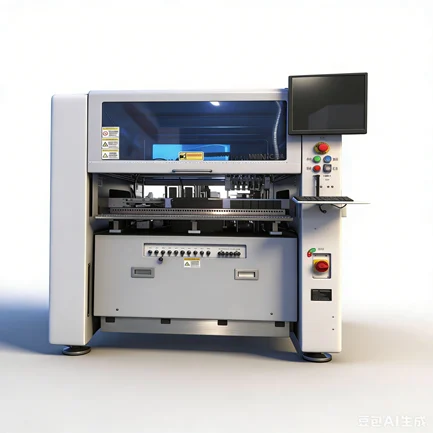

WIN series
Linear-motor insertion platforms
≥3,600 CPH
WIN-S4E / S6E throughput
90+
Independent IP rights
13 years
Industry experience
Plugin equipment
Placement & insertion equipment

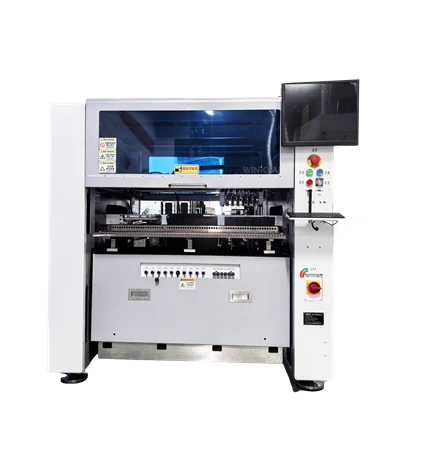

Explore Winseason placement and insertion equipment for conventional insertion, side insertion, parallel production and dual-line manufacturing applications.

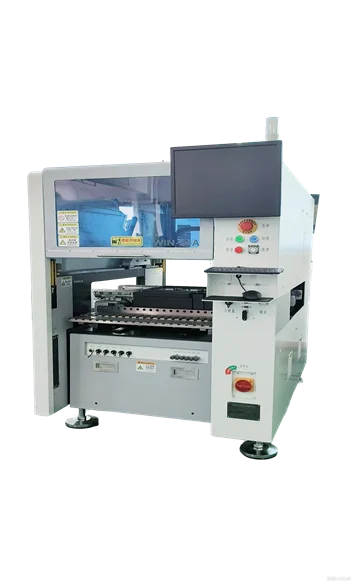

Custom side-insertion machine
WIN-S6D-FL
Custom side insertion for dense assemblies, including server motherboard applications.
Explore WIN-S6D-FLFeeder system
Full-range feeder systems for varied component formats
Vertical tape, tube, reciprocating, full-tray, and vibratory bowl configurations adapt to material formats and production takt-time needs.
01

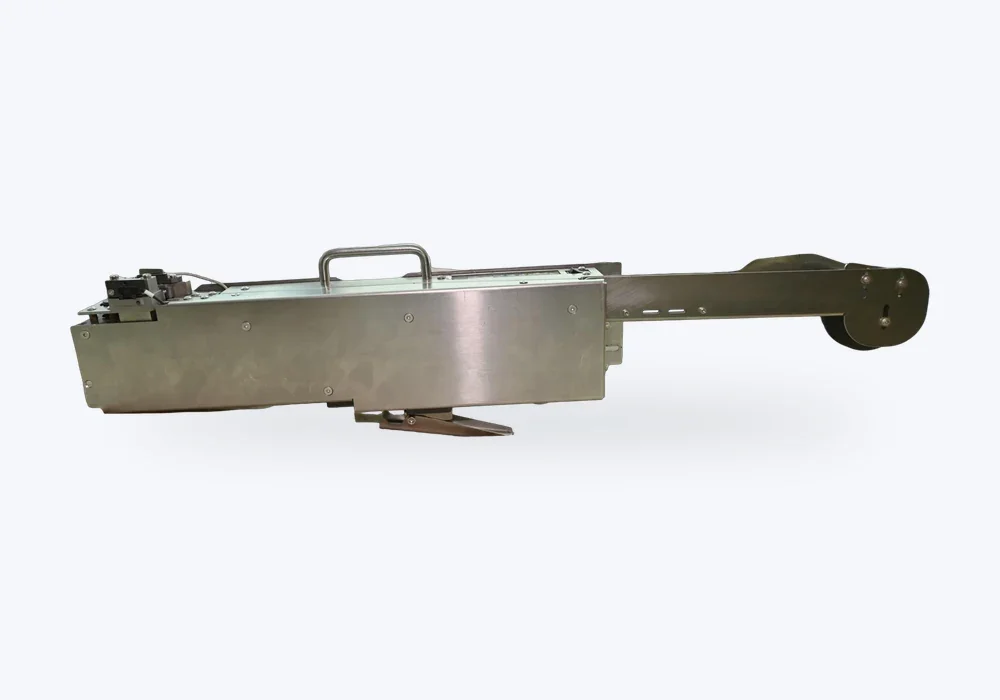

Vertical tape feeder
A compact vertical design integrates tape feeding, lead cutting, shaping, and optional bending for automatic insertion lines.
Explore vertical tape feeding
02
Tube feeder
A stacked-tube magazine supplies electronic components through adjustable guidance and arrival sensing for automated pickup.
Explore tube feeding
03
Reciprocating feeder
Belt transfer and vibration move bulk electronic components through a replaceable screening track for downstream equipment.
Explore bulk feeding
04

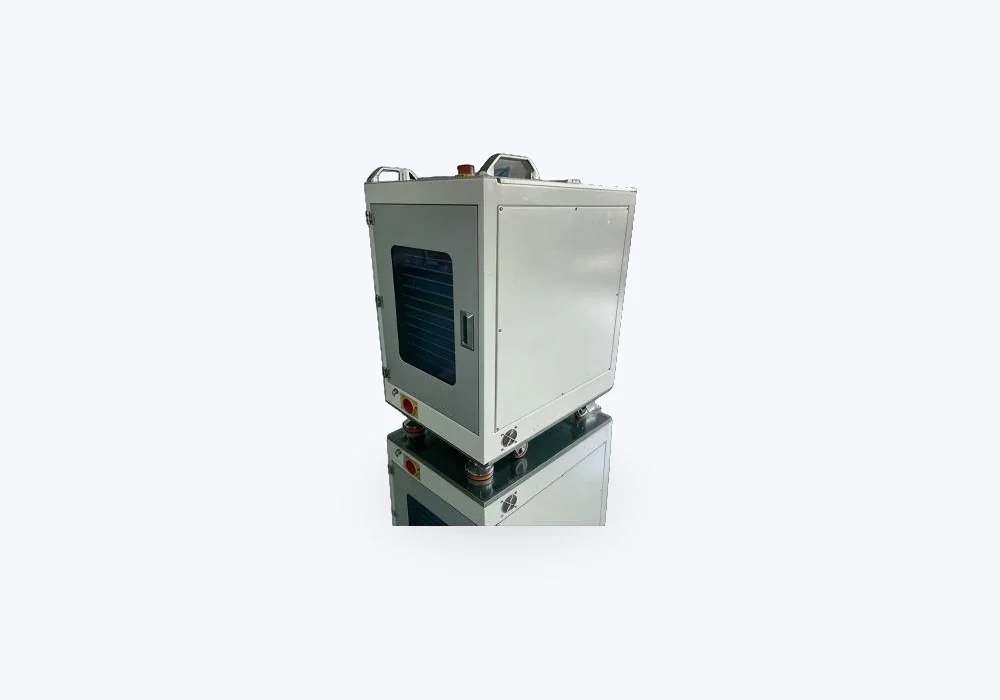

Full-tray auto-loader
Servo lifting and lead-screw transfer exchange complete blister trays, with capacity for up to 15 tray layers.
Explore tray exchange
05

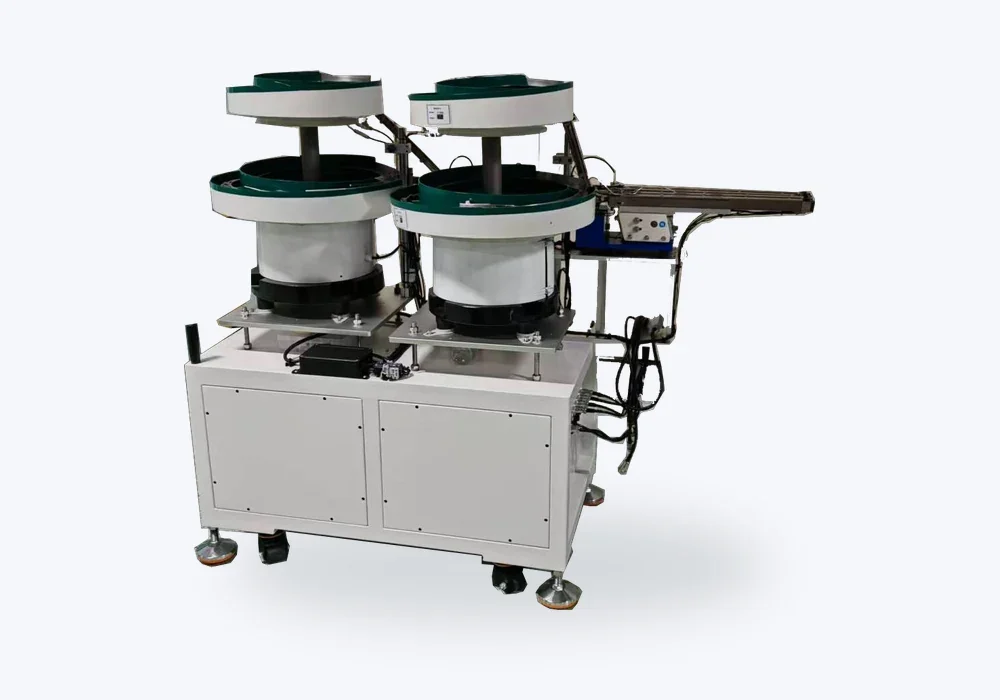

Vibratory bowl feeder
Custom spiral tracks, baffles, and sorting functions orient bulk components uniformly for reliable pickup.
Explore bowl feedingCore technology
Built for stable motion, precise positioning, and controlled insertion
02
One-piece formed crossbeam
Thousand-ton die-casting creates a rigid monolithic beam that limits deflection and swing during high-speed motion.
03
Global vision positioning
Synchronized multi-camera capture and image stitching locate oversized parts, inspect pins, and output XY coordinates and rotation angles.
04
Side insertion and force control
Precision positioning supports lateral insertion while multi-axis force sensing monitors insertion load and triggers abnormal alarms.
Solutions
Systems shaped around the production task
Winseason configures insertion, feeding, vision, and force-control functions around the component, board, and production requirement.

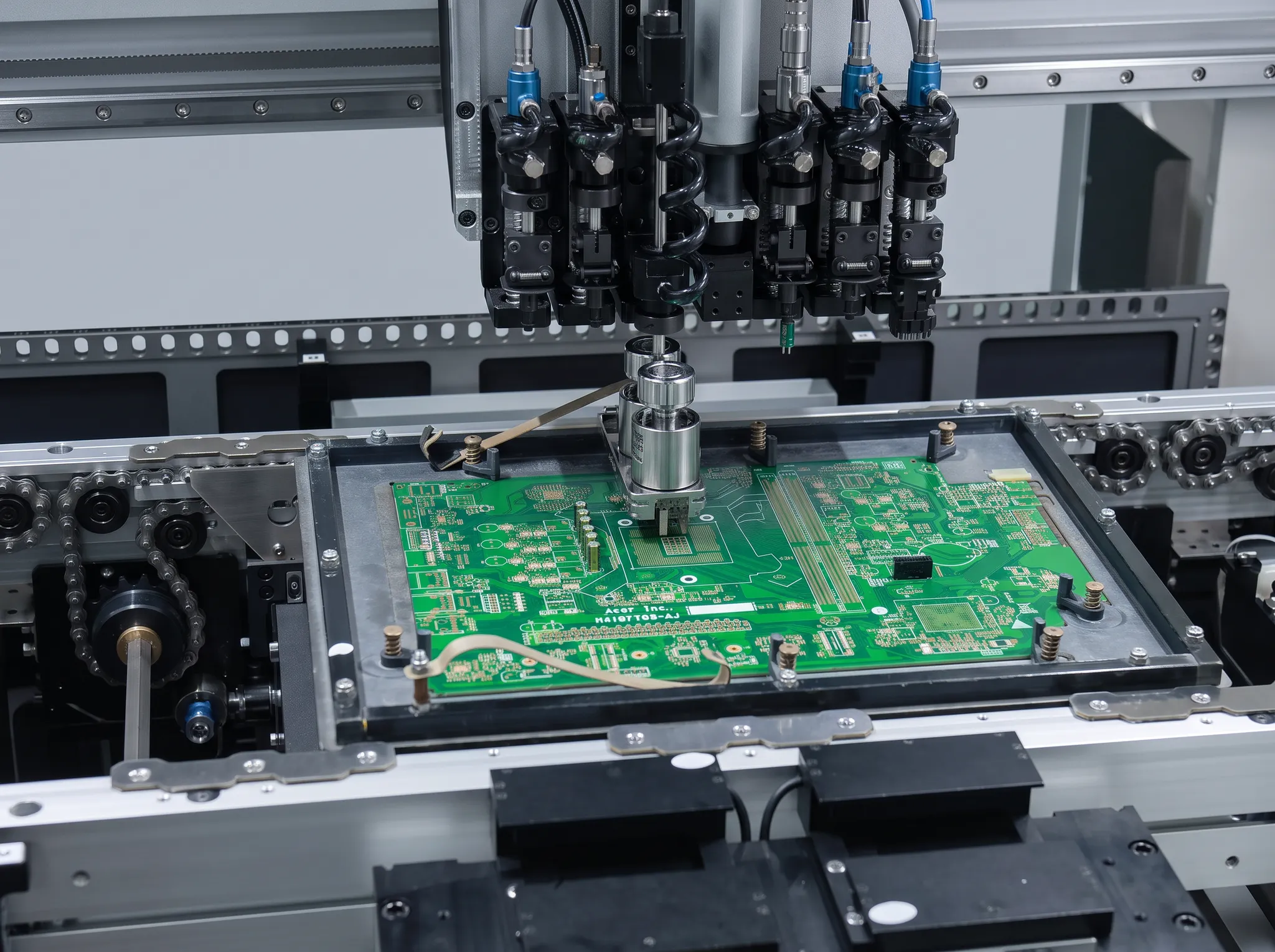

Complex PCB assembly
Global vision positioning, lateral insertion, and force control for boards with large or irregular component formats.
Discuss the application

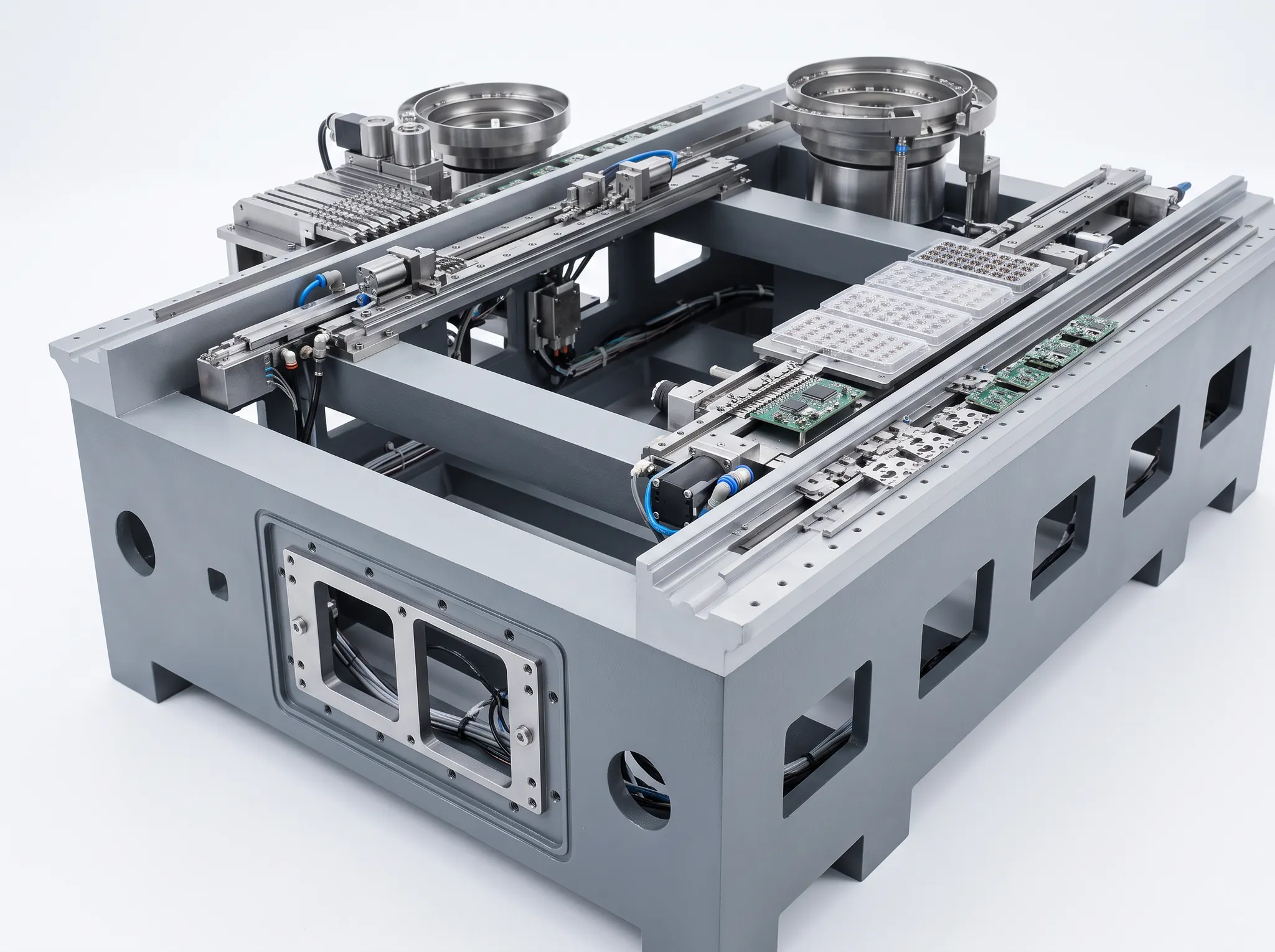

Precision component feeding
Tray, full-tray, DIMM, vibratory bowl, tube, and reciprocating feeders configured around incoming material and takt time.
Discuss the application

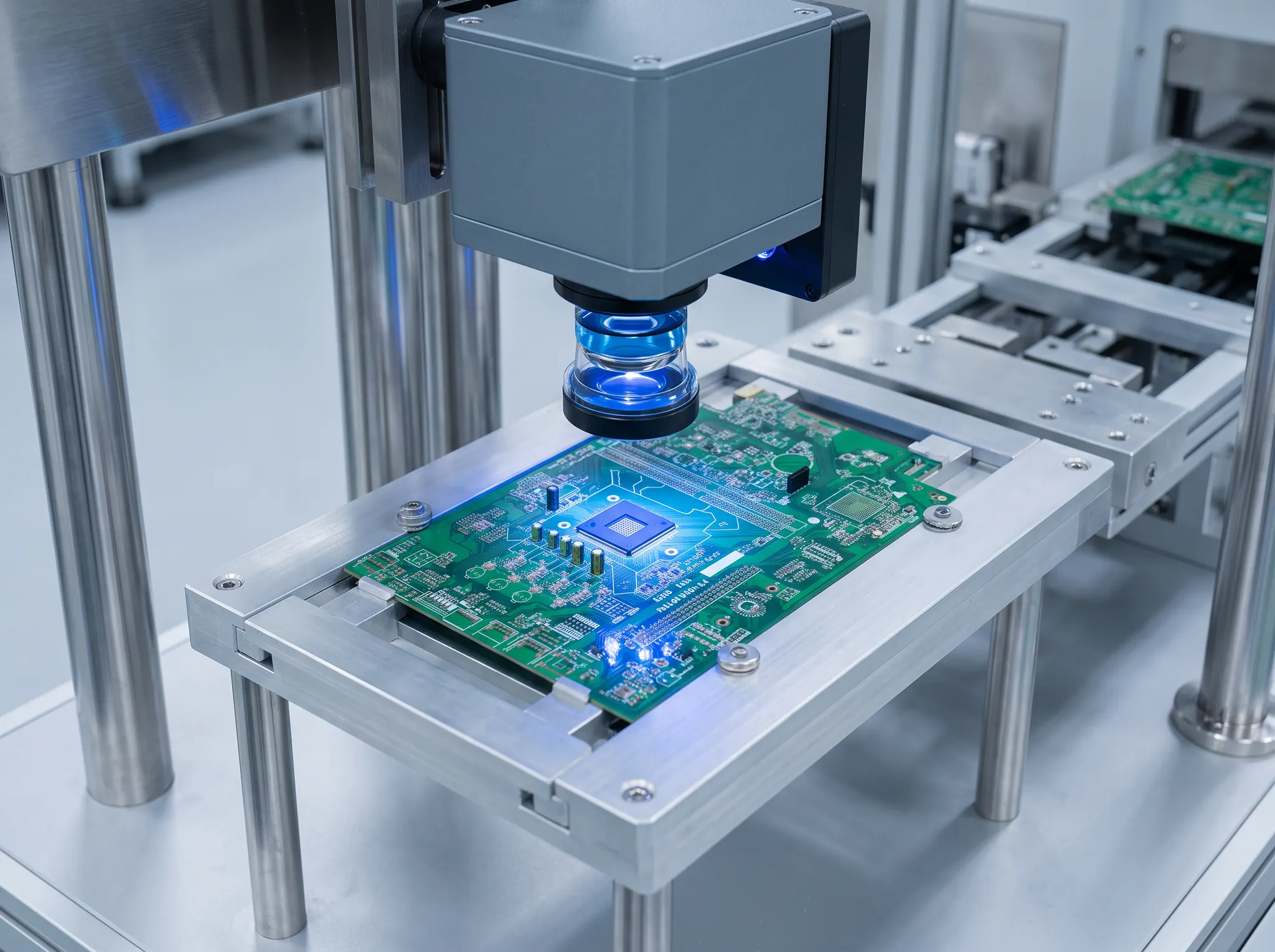

Machine-vision inspection
Multi-camera positioning, pin OK/NG inspection, and precise XY-coordinate and rotation-angle output for process control.
Discuss the applicationCompany
13 years focused on odd-form insertion systems
Winseason is a National High-Tech Enterprise specializing in odd-form insertion systems and configurable automation for electronics manufacturing.
Nearly 90% of the team are experienced R&D specialists. The company holds more than 90 independent intellectual-property rights, including 9 invention patents, 32 utility-model patents, and 33 software copyrights, with a service network spanning more than 30 provinces and cities in China.
90+
Independent IP rights
Nearly 90%
R&D specialists
30+
Provinces and cities served in China
Quality & service
Quality control from manufacturing through deployment
Standardized manufacturing, pre-shipment testing, installation, commissioning, and training support each system from build to production.
01
Modular parallel manufacturing
Standardized parallel workflows move equipment from components to complete-machine assembly efficiently.
02
Rigorous pre-shipment testing
Complete machines are tested before shipment to verify operation and production readiness.
03
Equipment lifecycle service
Installation, commissioning, maintenance planning, and systematic equipment training.
Discuss your application
Share the component, PCB, takt-time, feeding, or inspection requirement. Winseason can review where equipment, control, and vision need to work together.
